![[!--PicALt--]](/d/pic/spt299/spt299.png)
| Model | SPT299 with 3-section fly jib | |
| Capacity | 2.95t×1.40m | |
| Working radius | 11.5 m | |
| Ground lifting height | 14.5 m | |
| Underground lifting height | 10m—4 fall 20m—2 fall 40m—1 fall | |
| Winch device | Hook speed | 0-8m/min (4 fall） |
| Rope type | Φ8mm × 45m | |
| Telescopic system | Boom form | 4 section boom, hexagonal box construction |
| Boom length/Time | 3.3m-9.21m / 18sec | |
| Up and downs | Boom angle/Time | 0-80°/13sec |
| Slew system | Slew angle/ Speed | 0-360°（continuous）/60sec |
| Outrigger | Outrigger active form | Manual + Hydraulic |

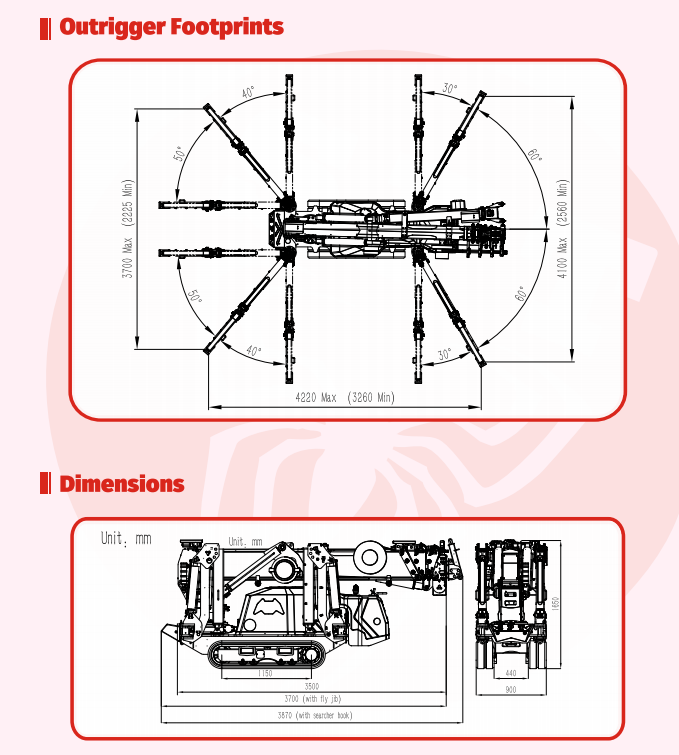

| Maximum extended dimensions (mm) | 4220（Length）×3700（Front）×4100（Back） | |
| Traction system | Walking way | Hydraulic motor drive、2 speed |
| Walking speed | 0-2.0km/ h | |
| Grade ability | 20°(36%) | |
| Ground length×width | 1150mm×230 mm | |
| Ground pressure | 42kPa（0.425 kg f / cm²） | |
| Electric motor | Voltage | AC380V（Optional） |
| Power/Speed | 4kW/1440 min-1 | |
| Sound level | Rated speed ≤75dB(A) （1m） | |
| Diesel engine | Model | 3TNV70(YANMAR) or 3TNM68(YANMAR) |
| Type / Displacement | 3 cylinder water cooled / 0.784L | |
| Rated output | 10.3 kw/ 3600 min-1 | |
| Starting method | Electric | |
| Operating temperature | -5°C~40°C | |
| Fuel/ Volume | Diesel/18L | |
| Battery capacity | 12v 45AH | |
| Specific fuel consumption | 274/kW-h | |
| Sound Level | Rated speed ≤87dB(A) (1m) | |
| Applied regulation | EPA-Tier4, EC stage V | |
| Operate system | Type of operation (crane, walk, leg）accelerator） | Wireless remote control and manual operation |
| Operating characteristic | Full proportional control and linkage control | |
| Dimension | L×W×H(Without optional device) | 3700m×900mm×1650mm |
| Weight | 2700kg(without jib) ; 2900kg(with hydraulic jib) | |
| Standard equipment | Diesel engine and motor (Dual power), Manual emergency and wireless proportional remote (Dual operation mode) , Black rubber track, Searcher hook, Single fall hook, Intelligent display screen, Moment limiter, Over hoist alarm and automatic stop device, Three-winding alarm and automatic stop device、Automatic hook stow、Outrigger position detector device, Outrigger off ground alarm and automatic stop device、Slinging rope detachment protector, EMO switch, Three color lamp, Remote control lamp, Voice prompt, Walking/Outrigger/Boom three-mode interlock system, Data records | |
| Optional device | Outrigger pads, Man basket, Glass suction, non-marking rubber track | |
