| Model | SG900D | |

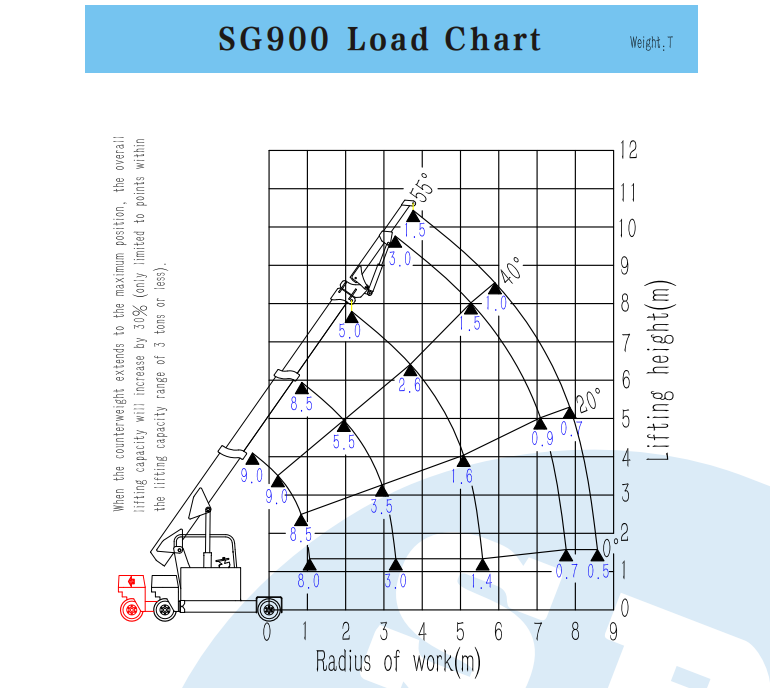

| Capacity | 9t×0.7m | |
| Working radius | 8.5m×0.5t | |
| Max lifting height | 10.3mX1.5t | |
| Winch device | Hook speed | 0-8m/min (4 fall） |
| Rope type | Φ10mm×80m | |
| Telescopic system | Boom form | 3+2 sections |
| Boom length/Time | 5.6m-10.9m/60sec | |
| Up and downs | Boom angle/Time | -5°-55°/50sec |
| Travel system | Walking way | Hydraulic |
| Speed | 0-8km/h | |
| Grade ability | Without load 5.7°(10%), With load-2.9°（5%） | |
| Rear wheel（Drive,steering） | 2 x 6.50 R10”（Pneumatic） | |
| Front wheel（Bearing wheel） | 4 x 21x8-R9”（Solid） | |
| Turning radius | 3.62m | |
| Diesel engine | Model | 4TNV88（Yanmar） |
| Type/Displacement | 4 cylinder/2.19L | |
| Rated output | 29.1kw/2400min-1 | |
| Starting method | Electric | |
| Operating temperature | -5°C~40°C | |
| Fuel/Volume | Diesel/60L | |
| Battery capacity | 12v 90AH | |
| Fuel consumption | 239g/kW-h | |
| Sound level | Rated speed≤93dBA (1m) | |
| Emission standard/Altitude | EPA4/EU5/China Tier 4/1200m | |
| Operate system | Type of operation | Steering wheel+Universal Handel/Remote |
| Operate characteristic | Proportional | |

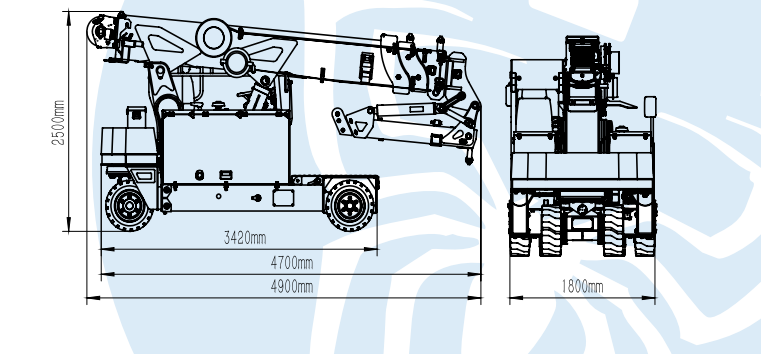

| Dimension | Length×Width×Height | 4900mm×1800mm×2500mm |
| Weight | With optional device | 9000kg |
