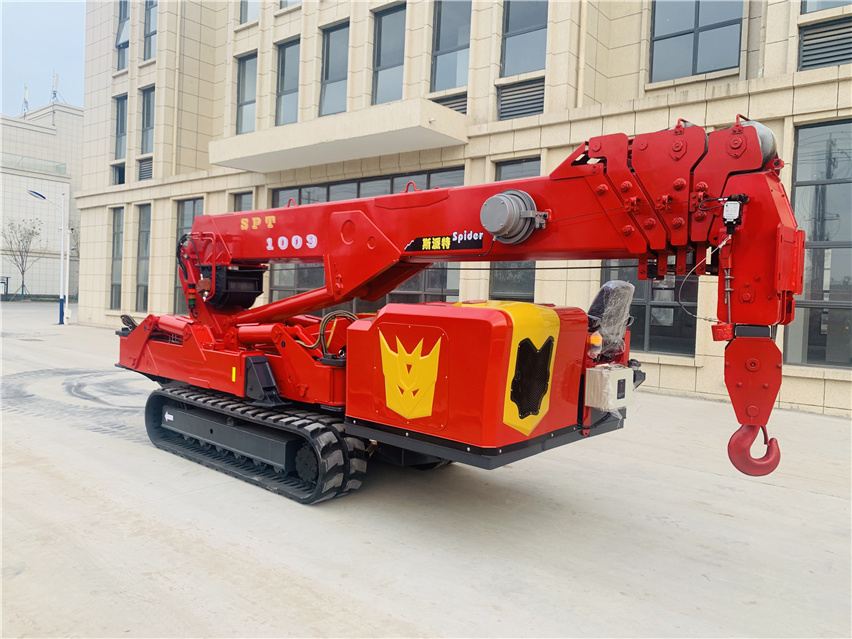

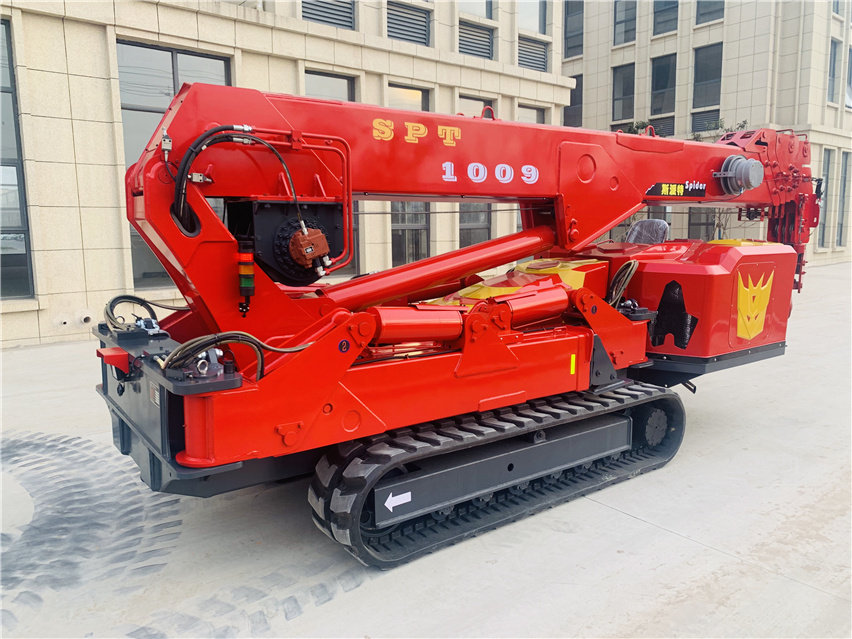

Model

SPT1009

Capacity

10.0t×2.5m

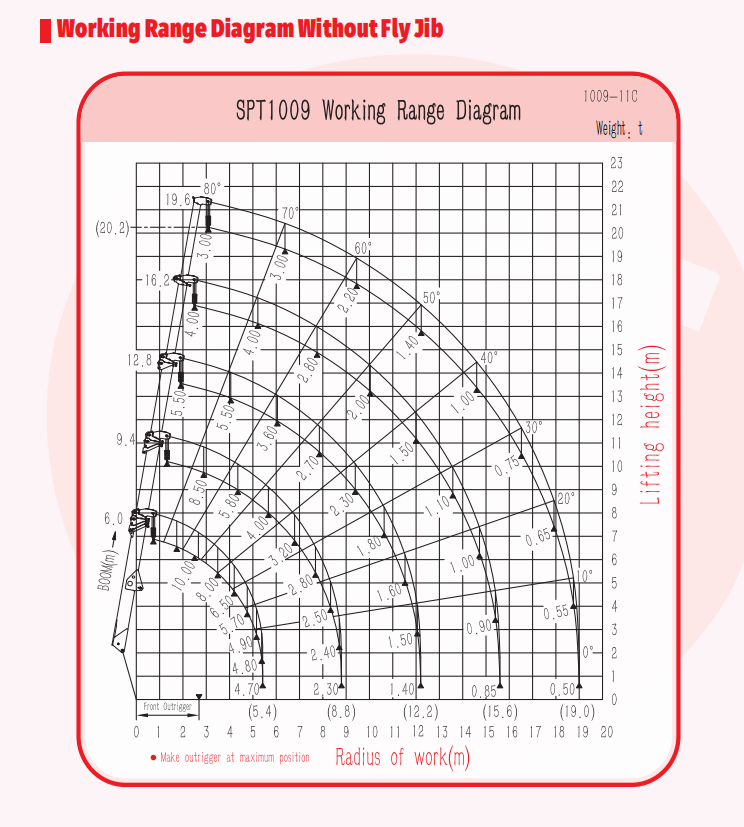

Working radius

19m×0.50t

Ground lifting height

20.2mx3.0t

Underground lifting height

20m-6 fall   30m-4 fall

62m-2 fall   125m-1 fall

Winch device

Hook speed

0-12m/min (6 fall） 0-18m/min (4 fall）

Rope type

Φ10mm×150m

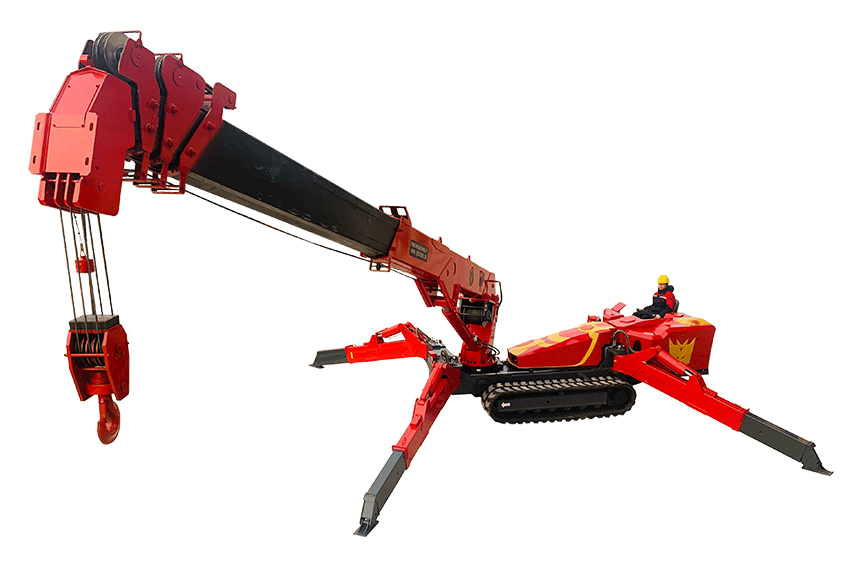

Telescopic system

Boom form

5 section boom, hexagonal box construction

Boom length/Time

6.0m-19.6m/130sec

Up and downs

Boom angle/Time

0-80°/80sec

Slew system

Slew angle/Speed

0-360°（continuous）/120sec

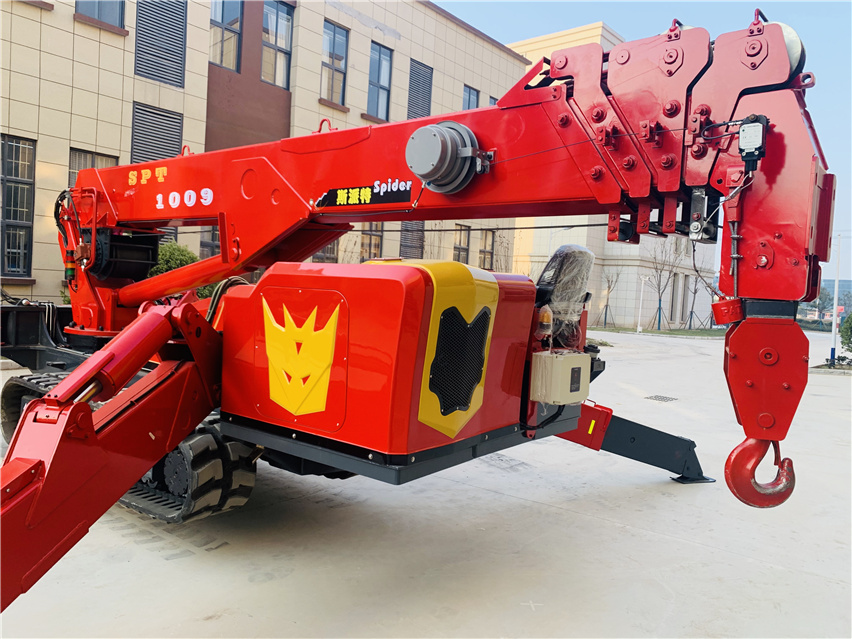

Outrigger

Outrigger active form

Manual + Hydraulic

Maximum extended dimensions (mm)

6850（Length）X7100（Front）X6970（Back）

Traction system

Walking way

Hydraulic motor drive、2 speed

Walking speed

0-2.0km/ h

Grade ability

23°(42%)

Ground length×width

2235mm×400 mm

Ground pressure

67kpa（0.68 kgf/cm²）

Electric motor

Voltage

AC380V（Optional）

Power/Speed

15kw/1440 min-1

Sound level

Rated speed ≤78dB(A) （1m）

Diesel engine

Model

4TNV88C (YANMAR)

Type/Displacement

4 Cylinder water cooled/2.19L

Rated output

29.1kw/2400 min-1

Starting method

Electric

Operating temperature

-5°C~40°C

Fuel/Volume

Diesel/60L

Battery capacity

12v 190AH

Specific fuel consumption

239g/kW-h

Sound Level

Rated speed ≤92dB(A)  (1m)

Applied regulation/Altitude

EPA-Tier4，EC stage V/1200m

Operate system

Type of operation

Wireless remote control and Dual axis joystick controller

Operating characteristic

Full proportional control

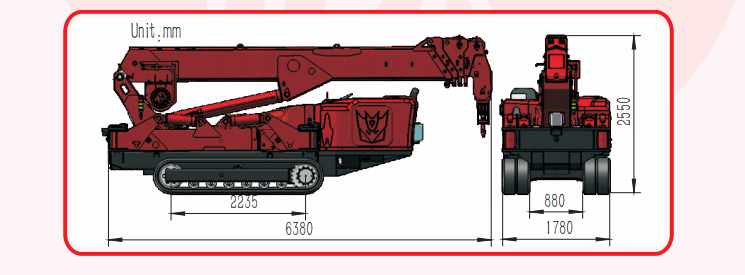

Dimension

Length×Width×Height

6380mm×1780mm×2480mm

Weight

(Without optional equipment）

11800kg

Standard configuration

Diesel engine, Electric motor, Radio remote control, Searcher hook, Black rubber track,

Intelligent display screen, Moment limiter, Over hoist alarm and automatic stop device,

Three-winding alarm and automatic stop device, Automatic hook stow, Outrigger position detector device, Outrigger off the ground alarm and automatic stop device, Slinging rope detachment protector, EMO switch, Three color lamp, Remote control lamp, Voice prompt, Walking/Outrigger/Boom three-mode interlock system, Data records

Optional configuration

Glass suction, White rubber track, Manual fly jib, Single-man basket, Outrigger pads
